在水泥工业中高温蝶阀产品特点和工作原理

发布时间:2018-07-18     来源:艾德威尔•瑞拓
水泥工业高温蝶阀采用采用耐高温特种合金钢材料,可保证蝶阀在高温工况下稳定运行工作,最高工作温度可达1300℃;广泛应用于水泥工业、环保工程、环保设备、烟气脱硫、余热回收、冶金、矿山、电力等工作生产过中,对管道中的高温介质按不同的控制信号(蜗轮、电动、气动)改变其流量大小,从而实现工业生产过程的自动远程控制。
Cement industry high temperature butterfly valve adopts used special high temperature resistant alloy steel material, can guarantee the butterfly valve under the condition of high temperature and stable operation, the highest working temperature is 1300 ℃; Widely used in cement industry, environmental engineering, environmental protection equipment, flue gas desulfurization, waste heat recovery, metallurgy, mining, power, etc, that we have produced for pipeline in high temperature medium according to the different control signal (worm gear, electric, pneumatic) to change its flow size, so as to realize the automatic remote control of industrial process.

水泥工业高温蝶阀产品特点:
Characteristics of high temperature butterfly valve in cement industry:

1、结构简单,动作灵敏,使用方便,可操作可用蜗轮蜗杆、电动、气动,满足程控和遥控的需要。
1. Simple structure, sensitive movement and convenient use. Worm, worm, electric and pneumatic can be used for operation, meeting the needs of program control and remote control.

2、流通量大,易于维护,工作性能可靠,具有调节介质流量、流速功能
2. Large flux, easy to maintain, reliable working performance, with the function of regulating medium flow and flow rate

3、内衬高温耐火材料,外端有滚动轴承及润滑系统。可采用水冷结构设计,快速散热;
3. Lined with high temperature refractory, rolling bearing and lubricating system are provided at the outer end. It can adopt water cooling structure design to dissipate heat quickly.

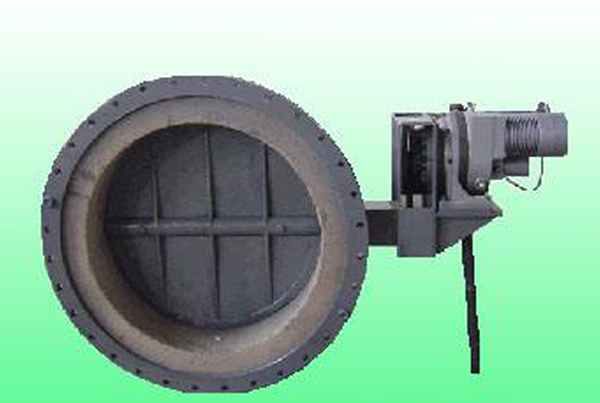

高温蝶阀

水泥工业高温蝶阀工作原理:
Working principle of high temperature butterfly valve in cement industry:

高炉煤气调节阀的启闭件为圆形蝶板,工作时控制机构按受控制信号(蜗轮,气动,电动)在圆柱形通内,阀轴带动圆形蝶板做旋传运动,达到调节介质流量的目的,阀门全开全关小于90°。

Blast furnace gas regulating valve open-close part for the circular disc, job control mechanism according to the control signal (worm gear, pneumatic, electric) within the cylindrical flux, spin valve shaft drive the circular disc do preach movement, achieve the purpose of regulating media flow, less than 90 ° fitted valve fully open.
